Model Number : 500T
Payment Terms : T/T
Delivery Time : 60~100 days
Clamping force : 500T
Platen size : 900 x 1200 mm
Layers : 4
Distance between layers : 150 mm
Distance between columns : 1300 mm
Diameter of cylinder : φ560 mm / 22 inch
Weight : 15.5 T
The frame is strong enough to make sure the the material would not be come out.
The molds could be open in 1second to make sure the cell in the foam is uniform.
The temperature difference could be controlled in ±1℃, so that the color of the sheet is uniform.
We use PLC to control the system and the whole process could be automatic or manual controlled.
No. | Main technical parameters | Discription |
1. | Clamping force | 500 Tons |
2. | Platen size | 900 x 1200 mm |
3. | Layers | 4 |
4. | Distance between layers | 150 mm |
5. | Distance between columns | 1300 mm |
6. | Diameter of cylinder | 22 inch / φ560 mm |
7. | Heating method | steam / hot oil |
8. | Control method | auto control by PLC |
9. | Temperature difference | ± 1 ℃ |
10. | Temperature range | Max. 180 ℃ |
1. Optimized thermal insulating board
2. Synchronizing mechanism
3. Auto-loading and unloading system
4.Heating oil boiler
5. Steam temperature-control system
![]() |

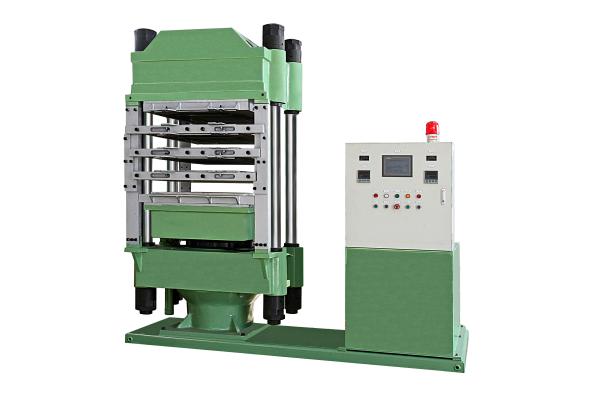

500T PE Footwear EVA Foaming Press Images |
